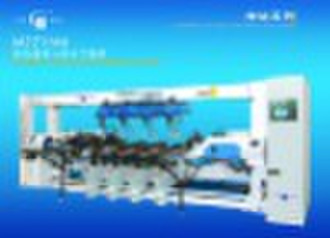

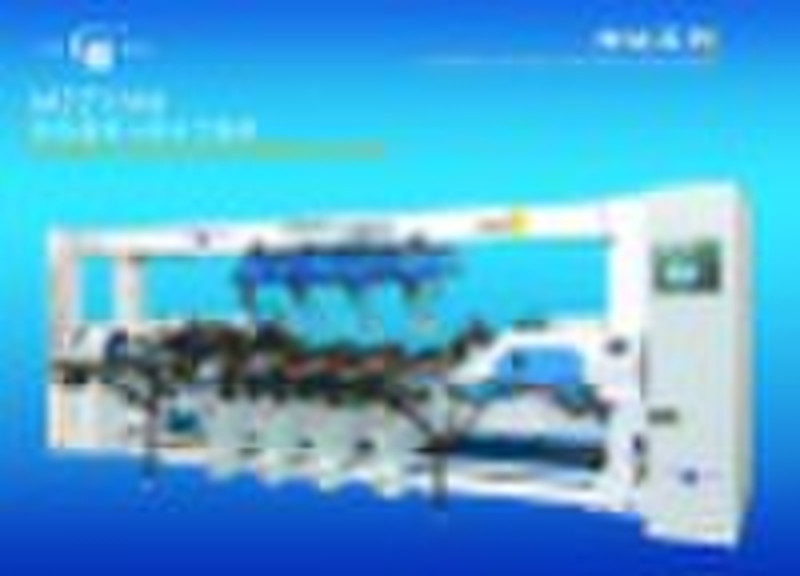

drilling Machine
Qun Ho
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | GUOQUAN |
| Model Number | MZZ7366 |
drilling machine Technical parameter: Model :MZZ7366Distance between bits :32mmQuantity of horizontal boring box :2Quantity ofdownvertical boringbox :5×2Quantity ofupvertical boring box :4×2Max panel diameter :Φ35mmMac panel thickness :60mmMax panel width :2450mmMin panelwidth :250mmFeeding speed :75m/minPower :31.5KW/380V/50HZPneumatic power :0.6-08MPaMachine Size :L5500×W2600×H1900mmMain characteristic:1), Continuously feeding with high speed, and fast boring with high precise.2), High speed with low noise.3), Using the advances PLC control system and the position fixing up system,have the low malfunction.4),Having the precision guide line with ball screw move easily.5), Frame instuction, make machine stable and durable.
Delivery terms and packaging
Packaging Detail: pallet Delivery Detail: 30 days
Port: nantong or shanghai port
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
