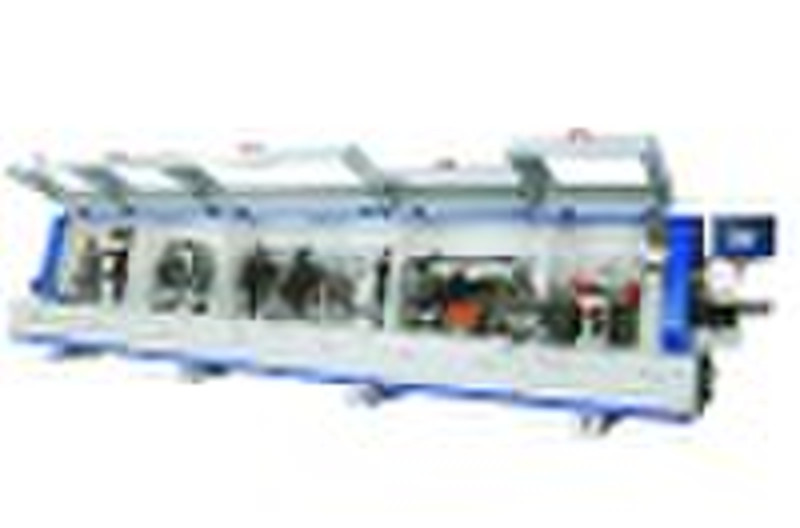

edge banding machine
Qun Ho
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | guoquan |
| Model Number | MDZ515B |
edge banding machine Panel width: ≥80mm Panel thickness: 5 50mm Edge thickness: 0.4 3mm Feeding speed: 12 20m/min Power 17.1kw Pneumatic power: 6 8kg/cm² Milling cutter: 150*30*H35 diamond Milling motor: 2.2kw 12000rpm 380v/220v End cutting motor: 0.35kw 12000rpm 380v Simple trimming motor: 0.7kw 18000rpm 380v/220v Fine trimming motor: 0.7kw 18000rpm 380v/220v Corner trimming motor: 0.7kw 18000rpm 380v/220v (10mm shorter than fine trimming motor) Buffing motor: 0.37kw 1420rpm 380v/220v End cutting saw: 100*22*30T Simple trimming cutter: 56*16*H14*4Z R2 Fine trimming cutter: 65*16*H13*4Z R2 Corner trimming cutter: 70*16*16*3T diamond Scraping knife: 20*12*2 Control system: PLC and TOUCH SCREEN Overall size: 7580*900*1590 MDZ515Bfunction with: MILLING, GLUING, EDGE PRESSING,END CUTTING,ROUGH TRIMMING,FINE TRIMMING,CORNER TRIMMING,SCRAPPING,BUFFING
Delivery terms and packaging
Packaging Detail: PLASTIC PACKING + PALLET Delivery Detail: 25 DAYS
Port: nantong or shanghai port
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
