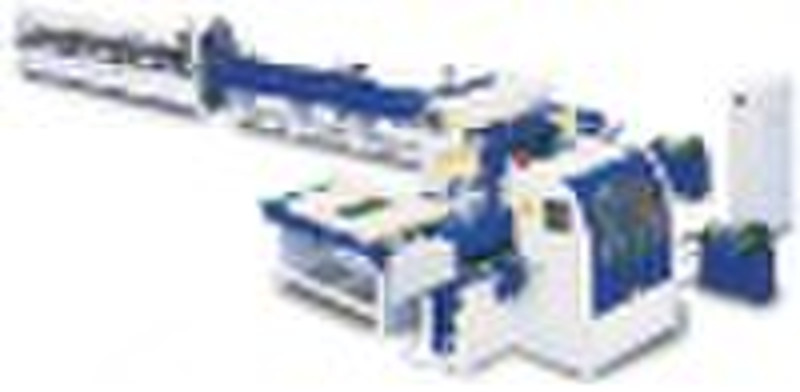

finger jointing line
Qun Ho
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | guoquan |
| Model Number | FJ150 |
finger jointing line Automatic finger shaper Automatic finger shaper(glue-spreading) Automatic finger assembler Max.assembling length. 900×80×150mm 900×80×150mm 6000×150×80mm Min.working size 150×30×20mm 150×30×20mm (W×H)30×20mm Max.production rate 24m/min Total motor power 18.7kw 19.45kw 9.5kw Oil pump motor power 2.2kw 2.2kw 4kw Main spindle motor power 15kw 15kw Motor power of saw blade spindle 5.5kw 5.5kw 4kw Max.hydraulic pressure output 850kg 850kg 7500kg Rotation speed for main spindle 6750rpm 6750rpm Rotation speed for saw blade spindle 2840rpm 2840rpm 2800rpm Main spindle diameter 50mm 50mm Saw blade spindle diameter 30mm 30mm 30mm Working air pressure 6-8kg/cm2 6-8kg/cm2 6-8kg/cm2 Overall dimensions 2900×1750×1650mm 3290×1750×1650mm 7000×1400×1700mm Packing dimensions 3100×1750×1750mm 3490×1750×1750mm 7200×1130×1800mm
Delivery terms and packaging
Packaging Detail: pallet + plastic cover Delivery Detail: 30 days.
Port: shanghai or nantong port
