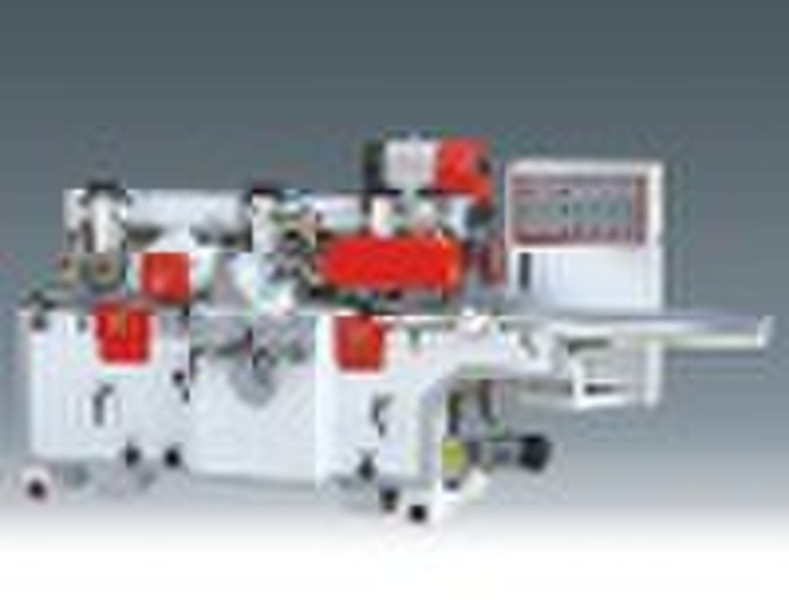

four-side moulder

four-side moulder Prepostioned centralization type adopted for adjustment and locking positions of respectiv cutter shafts, easy and fast for operation. Oil supply dvice used for table board, for lubrication at any time and an unobstructed feeding. Worm gear speed reducer used for drive and universal joint for actuation for lower power wheel and upper feeding wheel, for a vigorous and synchronous feeding to be more unobstructed. Table board and guide surface of guide plate plated with hard chromium. endurable and lasting. TECHNICAL INFORMATION machining width 20-160mm machining thickness 8-100mm feeding speed(stepless) 6-24m/min rotational speed fo cutter shaft 6000rpm cutter mounting diameter 120mm diameter of edge-trimming cutter 136mm total power 20.95kw power of feeding motor 2.2kw crossbeam elevation 0.75kw front bedknife and right knife 3kw*2 upper knife 4kw(5.5kw optional) rear bedknife 4kw(5.5kw optional) left knife 4kw machine exterior dimensions 3030*1200*1460mm weight 1200kg
