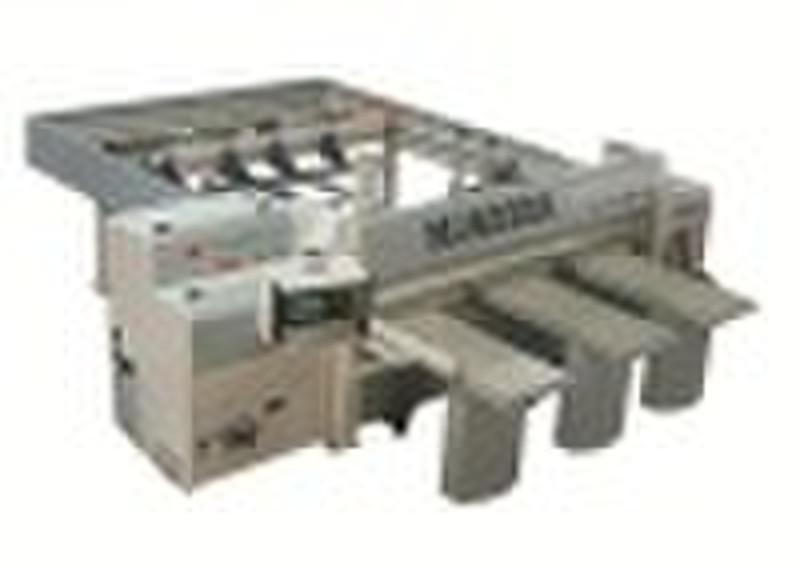

panel saw

panel saw ModelMJ6232ACAPACITYMaximum cutting length3250mm x 3250mmMaximum cutting depth0 100mm ( 120mm)MAIN SAWBLADEMain sawblade diameterØ 405mm (Ø 455mm)Arbor diameterØ 60mmMain sawblade speed3910R.P.M.SCORING SAWBLADEScoring sawblade diameterØ 180mmArbor diameterØ 45mmScoring sawblade speed5100R.P.M.SAW CARRIAGEForward speed5 100 M/minReturn speed120 M/minMOTORMain sawblade motor20HP (25HP optional)Scoring sawblade motor3HPSaw carriage drive motor1kwHigh pressure blower motor3HPAutomatic feed motor2kw (AC servo motor)OTHERPusher feed speed5 80M/minWorking air pressure7kg/cm2Table height from floor950mm Characteristics: 1, The machine adopts PLC,touch screen and high precision servo control system,with high automation and low malfunction.All of the parts imported from oversea. 2, Advanced saw carriage mechanism,saw blade lift can be detected and adjusted automatically,scoring saw movement can be adjusted in control panel. 3, Automatic positioning to make panel touch tightly to the backer. back clearance characteristic,position accurate. 5, Adopt single slide way mechanism,it is able to reduce the movement of inertia of the saw carriage to achieve the greatest straight degree of cutting. 6, Room-type dust protect cover. 7, High precision feed magnetic grid imported from Gremany. 8, Suspended material grasping claws. 9, Central dust collection system,reduce pollution. 10,Float table make workpiece moving easily.
